¹⁶⁹Tm   ¹⁷⁰Tm   ¹⁷¹Tm   ¹⁷²Tm

Go to isotope

Total MACS at 30keV:

X

±

Y*

mb

Cross sections do not include stellar enhancement factors!
* only theoretical data available

Version	Total MACS [mb]	Partial to gs [mb]	Partial to isomer [mb]
1.0	X ± Y*	-	-
0.0	1870 ± 330*	-	-

(Version 0.0 corresponds to Bao et al.)

No exp. data available. Rec. value is semi-empirical estimate.
Last review: August 2014

original	renorm.	year	type	Comment	Ref
1821		2011	e	ENDF/B-VII.1	endfb71
973		2005	t	MOST 2005	Gor05
1174		2002	t	MOST 2002	Gor02
1377		2000	t	NON-SMOKER	RaT99
2260		1976	t		HWF76

Original:MACS [<σ v>/v_T] (mb) for kT=30 keV, based on the published cross sections except where indicated otherwise.
Renorm:MACS [<σ v>/v_T] (mb) for kT=30 keV for which the reference or standard cross section was meanwhile improved.
Type: The letters and numbers in the column labelled 'type' give information on how the cross section has been obtained:

e	Evaluated value taken directly from the reference
t	Theoretical value

Energy	5keV	8keV	10keV	15keV	20keV	25keV	30keV	40keV	50keV	60keV	80keV	100keV
MACS	4944	-	3028	2550	2252	2036	1870 ± 330	1627	1454	1320	1124	982
Xfactor	1.00	0.98	0.96	0.87	0.77	0.69	0.62	0.50	0.41	0.34	0.24	0.17
SEF	1.00	1.00	1.01	1.02	1.03	1.05	1.06	1.07	1.07	1.07	1.05	1.02
Rate	2.93	-	2.56	2.67	2.76	2.83	2.87	2.93	2.93	2.90	2.79	2.66

MACS:
Reference:
Procedure: 't' (The MACS from kT=5 keV to 100 keV are obtained from theoretical calculations with corresponding uncertainties between 25 and 50% in most cases.)
Year: 2000

X-factor:
Reference: Rau12
Year: 2012

SEF (Stellar enhancement factor):
Reference: Rau09
Year: 2009
Comment:

Rate:
Reaction rate N_A<σv> given in 10⁸ cm³/mole/s, including SEF

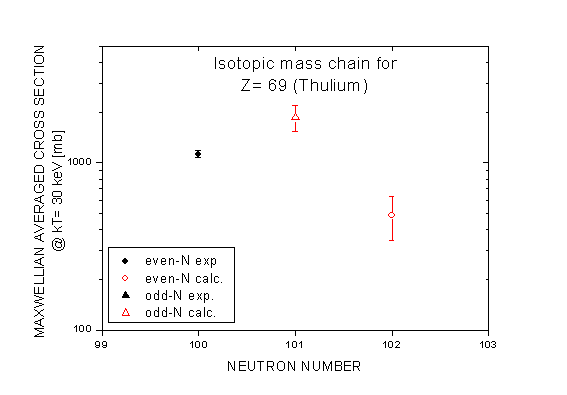

	170Lu 2.01 d β+ 171Lu 8.24 d β+ 172Lu 6.70 d β+ 173Lu 1.37 a β+ 174Lu 3.31 a β+ 169Yb 32.02 d β+ 170Yb 3.04 768 mb 171Yb 14.28 1210 mb 172Yb 21.83 341 mb 173Yb 16.13 754 mb 168Tm 93.10 d β+ 169Tm 100 1129 mb 170Tm 128.59 d 1870 mb, β- 171Tm 1.92 a 486 mb, β- 172Tm 2.65 d β- 167Er 22.869 1425 mb 168Er 26.978 338 mb 169Er 9.39 d 653 mb, β- 170Er 14.91 170 mb 171Er 7.52 h β- 166Ho 1.12 d β- 167Ho 3.00 h β- 168Ho 2.99 m β- 169Ho 4.72 m β- 170Ho 2.76 m β-
