145Nd 146Nd
Total MACS at 30keV: | 452 | ± | 6 | mb |
Cross sections do not include stellar enhancement factors!
Version | Total MACS [mb] | Partial to gs [mb] | Partial to isomer [mb] |
---|
1.0 | 452 ± 6 | - | - | 0.0 | 425 ± 5 | - | - |
(Version 0.0 corresponds to Bao et al.)
Rec. value is from WVK98a. MACS vs. kT at kT= 5 keV extrapolated with normalized energy dependencies of averaged evaluated libraries ( endfb71, jendl40).
Last review: In process
original | renorm. | year | type | Comment | Ref |
371 ± 16 E(n)= 35 (10) keV | | 1999 | c | Pelletron, TOF, Au:ENDF/B-VI and MaG67b | VIM99 |
424.8 ± 4.5 | 452 ± 6 | 1998 | d | VdG, TOF, Au:RaK88,Mac82e | WVK98a |
623 ± 54 | | 1978 | c | Linac, TOF, 6Li+10B, Sat. | NAK78 |
380 ± 90 | | 1978 | c,2 | Linac, TOF, 6Li, Au:Sat., k=0.9507 | MAM78a |
451 ± 45 | | 1975 | b | Linac, TOF, 10B, Au+Ag+etc:Sat. | SKH75 |
420 ± 50 | | 2011 | e | ENDF/B-VII.1 incl. covariances | endfb71 |
408 | | 2011 | e | JENDL-4.0 | jendl40 |
413.9 | | 2006 | e | ENDF/B-VII.0 | endfb7 |
489.0 | | 2004 | e | JEFF-3.1 | jeff31 |
530.6 | | 2002 | e | JENDL-3.3 | jendl33 |
300 | | 1981 | e | | KNM81 |
600 | | 1971 | s | | AGM71 |
207 | | 2005 | t | MOST 2005 | Gor05 |
202 | | 2002 | t | MOST 2002 | Gor02 |
475 | | 2000 | t | NON-SMOKER | RaT99 |
529 | | 1981 | t | | Har81 |
485 | | 1976 | t | | HWF76 |
Original:MACS [<σ v>/v T] (mb) for kT=30 keV, based on the published cross sections except where indicated otherwise.
Renorm:MACS [<σ v>/v T] (mb) for kT=30 keV for which the reference or standard cross section was meanwhile improved.
Type: The letters and numbers in the column labelled 'type' give information on how the cross section has been obtained:
c | Directly quoted from the reference itself | d | Renormalized 2017 based on updated Au measurement | 2 | Including k from Ref. ABM82, where k is a correction factor which has been applied to the originally reported cross section | b | Calculated from smooth cross sections with model fit: ln(sigma) = a + a1 ln(E) + a2 ln^2(E) | e | Evaluated value taken directly from the reference | s | Semiempirical estimates given in the reference | t | Theoretical value |
Energy | 5keV | 8keV | 10keV | 15keV | 20keV | 25keV | 30keV | 40keV | 50keV | 60keV | 80keV | 100keV | MACS | 1543 ± 106 | 1104 ± 48 | 946 ± 33 | 718 ± 17 | 592 ± 11 | 510 ± 9 | 452 ± 7 | 372 ± 5 | 321 ± 4 | 285 ± 4 | 237 ± 4 | 206 ± 5 | Xfactor | 1.00 | 1.00 | 1.00 | 0.99 | 0.98 | 0.96 | 0.94 | 0.90 | 0.87 | 0.84 | 0.79 | 0.76 | SEF | 1.00 | 1.00 | 1.00 | 0.99 | 0.98 | 0.97 | 0.95 | 0.91 | 0.88 | 0.86 | 0.83 | 0.81 | Rate | 9.16 | 8.28 | 7.93 | 7.34 | 6.91 | 6.54 | 6.22 | 5.69 | 5.32 | 5.04 | 4.67 | 4.42 |
MACS:
Reference: Rei18Procedure: 'd' (Renormalized 2017 based on updated Au measurement) Year: 2018
X-factor:
Reference: Rau12Year: 2012
SEF (Stellar enhancement factor):
Reference: Rau09Year: 2009Comment:
Rate:
Reaction rate N A<σv> given in 10 7 cm 3/mole/s, including SEF

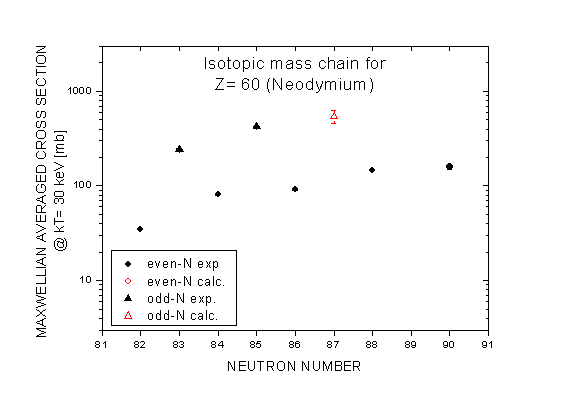

Isotope: Neodymium
|
