Available isotopes for Helium (Z=2)
3He

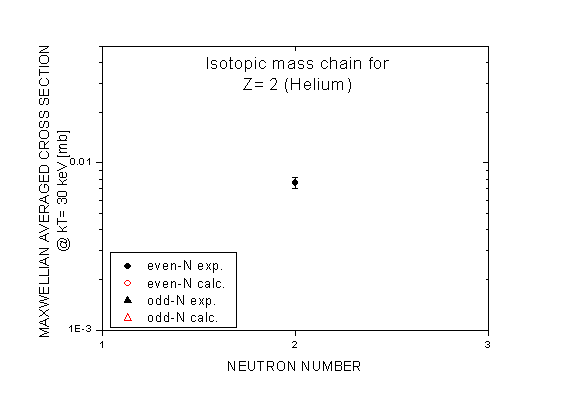

Recommended MACS30 (Maxwellian Averaged Cross Section @ 30keV)
3He 4He
Cross sections do not include stellar enhancement factors! History
(Version 0.0 corresponds to Bao et al.) Comment
New recommended value from JENDL 3.3 and 4.0 database which fit experimental data points from KML93,WAP91,WPA89,ABW79 between 24.5 and 570 keV. Assumed 10 % uncertainty like in WAP91.
Last review: May 8th, 2012 List of all available values
Original:MACS [<σ v>/vT] (mb) for kT=30 keV, based on the published cross sections except where indicated otherwise. Renorm:MACS [<σ v>/vT] (mb) for kT=30 keV for which the reference or standard cross section was meanwhile improved. Type: The letters and numbers in the column labelled 'type' give information on how the cross section has been obtained:
MACS, SEF and Reaction Rates for different energies
MACS: Reference: WAP91,KML93,jendl33 Procedure: 'e+t' (The MACS from kT=5 keV to 100 keV are derived from calculated cross sections, which are then normalized to experimental data, e.g. to the values at kT=25 keV obtained in activation measurements. In these cases the uncertainties should be linearly increased below 25 and above 30 keV to reach about 30% at the extreme kT values.) Year: 1991,1993 X-factor: Please note: X-factors for this element have not been calculated but are expected to be close to 1. SEF (Stellar enhancement factor): Reference: Year: Comment: Please note: SEF for this element have not been calculated but are expected to be close to 1. Rate: Reaction rate NA<σv> given in 102 cm3/mole/s, including SEF Chart of nuclei
Isotope: Helium
|
