¹H   ²H

Go to isotope

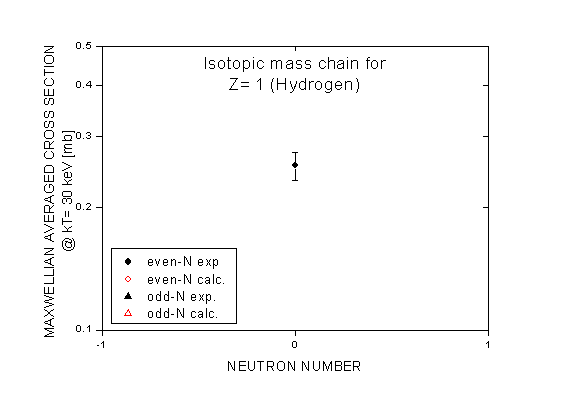

Total MACS at 30keV:

0.00257

±

0.00021

mb

Cross sections do not include stellar enhancement factors!

Version	Total MACS [mb]	Partial to gs [mb]	Partial to isomer [mb]
1.0	0.00257 ± 0.00021	-	-
0.3	0.0030 ± 0.0002	-	-
0.0	-	-	-

(Version 0.0 corresponds to Bao et al.)

New dataset in v0.3. Reaction rate parameterized as RR(cm^3 /sec /mole) = 214*T9^0.075
+ 742*T9 with T9 being the temperature in GK (NKS06).
Last review: April 5th, 2012

original	renorm.	year	type	Comment	Ref
0.00223 ± 0.00034 E(n)= 30.5 keV		2006	c	Pelletron, TOF, 6Li, Au:ENDF/B-VI and MaG67b	NKS06
0.0019 ± 0.0003 E(n)= 52 keV		2008	c	Pelletron, TOF, 6Li, Au:ENDF/B-VI and MaG67b	OIN08
0.00199 ± 0.00025 E(n)= 54.2 keV		2006	c	Pelletron, TOF, 6Li, Au:ENDF/B-VI and MaG67b	NKS06
0.001989		2011	e	ENDF/B-VII.1	endfb71
0.002351		2011	e	JENDL-4.0	jendl40
0.001989		2004	e	JEFF 3.1	jeff31
0.0028		1967	t		FCZ67

Original:MACS [<σ v>/v_T] (mb) for kT=30 keV, based on the published cross sections except where indicated otherwise.
Renorm:MACS [<σ v>/v_T] (mb) for kT=30 keV for which the reference or standard cross section was meanwhile improved.
Type: The letters and numbers in the column labelled 'type' give information on how the cross section has been obtained:

c	Directly quoted from the reference itself
e	Evaluated value taken directly from the reference
t	Theoretical value

Energy	5keV	8keV	10keV	15keV	20keV	25keV	30keV	40keV	50keV	60keV	80keV	100keV
MACS	0.0030	-	0.0026	0.0025	0.0025	0.0025	0.0026 ± 0.0002	0.0027	0.0028	0.0029	0.0031	0.0033
SEF	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00
Rate	2.17	-	2.66	3.14	3.62	4.05	4.61	5.53	6.41	7.28	8.98	10.69

MACS:
Reference: NKS06
Procedure: 'e+t' (The MACS from kT=5 keV to 100 keV are derived from calculated cross sections, which are then normalized to experimental data, e.g. to the values at kT=25 keV obtained in activation measurements. In these cases the uncertainties should be linearly increased below 25 and above 30 keV to reach about 30% at the extreme kT values.)
Year: 2006,2012

X-factor:
Please note: X-factors for this element have not been calculated but are expected to be close to 1.

SEF (Stellar enhancement factor):
Reference:
Year:
Comment:
Please note: SEF for this element have not been calculated but are expected to be close to 1.

Rate:
Reaction rate N_A<σv> given in 10² cm³/mole/s, including SEF
