Available isotopes for Dysprosium (Z=66)

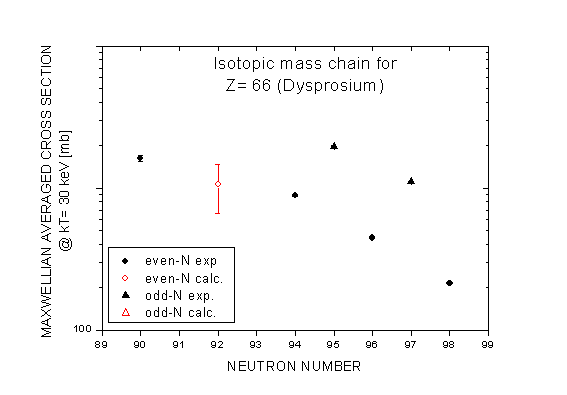

Recommended MACS30 (Maxwellian Averaged Cross Section @ 30keV)
156Dy 157Dy
Cross sections do not include stellar enhancement factors! History
(Version 0.0 corresponds to Bao et al.) Comment
New recommended cross section is recalculated from DDH09 using recent evaluated libraries (endfb71 and jendl40). Uncertainty is 7.2 % as in DDH09 plus deviation of both libraries.
Last review: October 2013 List of all available values
Original:MACS [<σ v>/vT] (mb) for kT=30 keV, based on the published cross sections except where indicated otherwise. Renorm:MACS [<σ v>/vT] (mb) for kT=30 keV for which the reference or standard cross section was meanwhile improved. Type: The letters and numbers in the column labelled 'type' give information on how the cross section has been obtained:
MACS, SEF and Reaction Rates for different energies
MACS: Reference: DDH09,jendl40,endfb71 Procedure: 'e+t' (The MACS from kT=5 keV to 100 keV are derived from calculated cross sections, which are then normalized to experimental data, e.g. to the values at kT=25 keV obtained in activation measurements. In these cases the uncertainties should be linearly increased below 25 and above 30 keV to reach about 30% at the extreme kT values.) Year: 2013 X-factor: Reference: Year: SEF (Stellar enhancement factor): Reference: Year: Comment: Rate: Reaction rate NA<σv> given in 108 cm3/mole/s, including SEF Chart of nuclei
Isotope: Dysprosium
|
